Answer-first summary: Gas panel automation is not only routing. MFCs, valves, regulators, filters, fittings, seals and tube sizes must map to real customer-approved parts with orientation, port, clearance and BOM identity preserved.

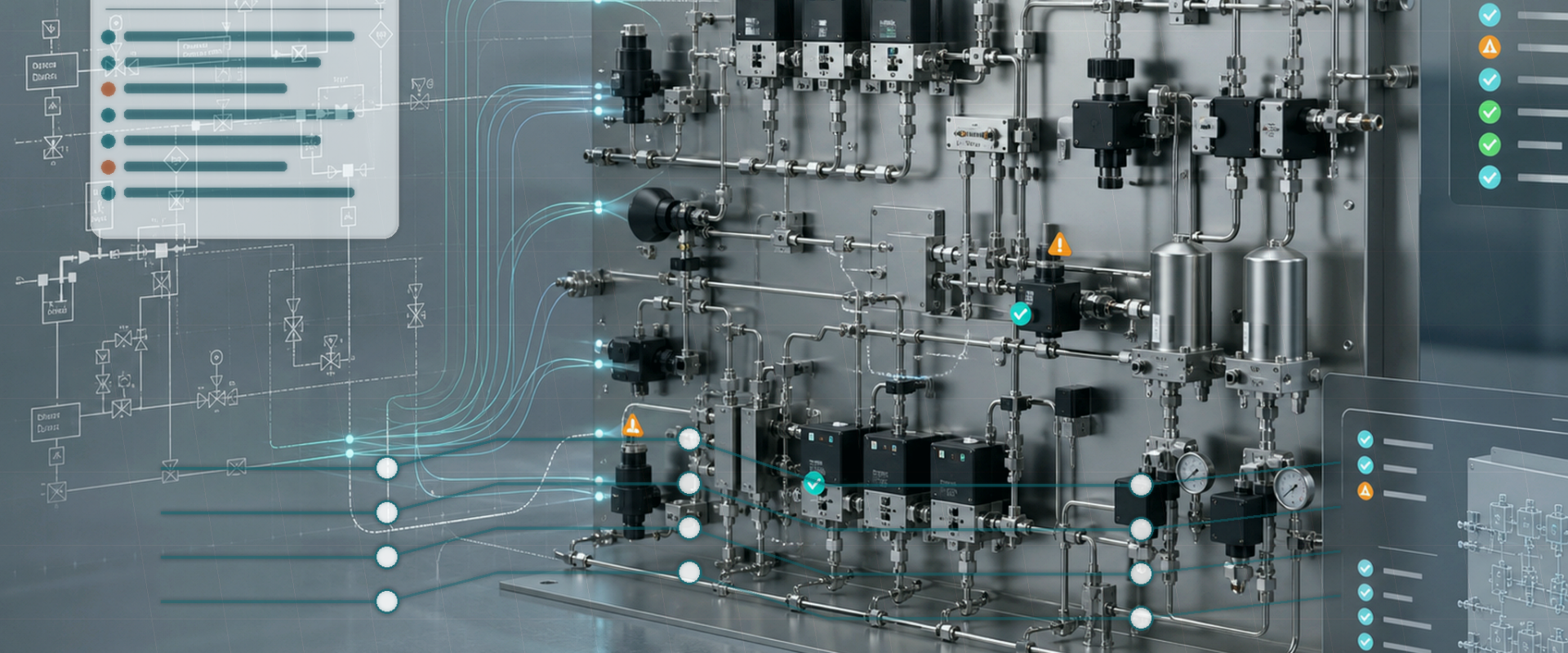

A P&ID may show a valve, MFC and filter as symbols. A SOLIDWORKS assembly must choose real part numbers, port orientations, fittings, tubes and service envelopes. That mapping is where BOM context becomes critical.
What engineers should clarify first
| Component | BOM fields to preserve | CAD checks |
|---|---|---|
| MFC | Manufacturer, range, gas service, fittings, electrical interface | Orientation, clearance, port alignment, service access |
| Valve | Actuation, seal material, port type, Cv/rating | Manifold position, service clearance, flow direction |
| VCR fitting | Tube size, gasket/seal family, gender/type, material | Mate compatibility, wrench access, route continuity |
| Regulator/filter | Pressure range, element, maintenance interval | Envelope, replacement access, upstream/downstream logic |
The part library is the anchor
Without a customer-approved part library, an AI system may generate plausible geometry that is not procurable or not allowed by the customer. The right workflow starts with library governance.
BOM from P&ID is an extraction and mapping problem
The P&ID gives intent. The BOM gives identity. Automation must connect the two and flag missing specifications, equivalent parts or ambiguous tags.
Good pilots use a narrow component family
A useful first pilot does not need the entire plant. A representative gas stick with valves, MFC, fittings and rules can prove whether symbol extraction, part mapping and native assembly generation are workable.
How this connects to MST
Prepare a sample gas-stick BOM with manufacturer, part family, connection and orientation fields before a pilot. MST uses this article as an intake guide, not as a promise of partner access, compliance certification, fixed sample count, fixed pricing, or automatic production approval.
FAQ
Can the system choose equivalent parts?
It can suggest or flag equivalents only if the customer provides approved equivalency rules. Procurement approval remains separate.
What is the most important input?
A clean part library and mapping table are usually more important than a beautiful P&ID.
Can the output include BOM context?
Yes, the target is a reviewable native assembly with BOM context and exceptions, not just a visual 3D model.
