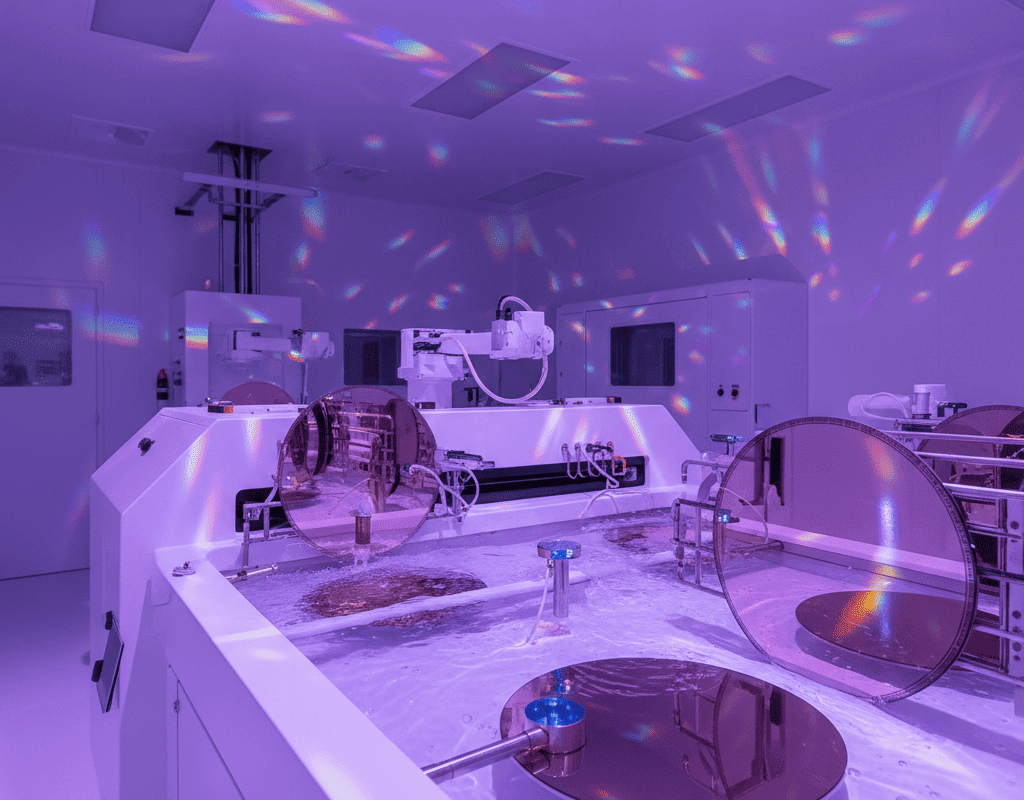

AI for Wet Cleaning Equipment: Chemical Concentration Monitoring and Defect Prevention

Why Is Wet Cleaning the Most Underestimated Process in Semiconductor Manufacturing?

Wet cleaning is performed more frequently than any other semiconductor process — a typical advanced logic flow includes 80-120 wet clean steps, representing 15-20% of all process operations. Every major process step (etch, implant, CMP, deposition) is preceded or followed by a wet clean to remove particles, organic contaminants, metal ions, native oxide, or post-etch residues. The cleanliness of the wafer surface directly determines the quality of the subsequent process.

Despite its ubiquity and criticality, wet cleaning receives disproportionately little engineering attention compared to processes like lithography or etch. Many fabs still manage chemical baths using time-based replacement schedules established years ago, with periodic manual titration to check concentration. This approach is both wasteful (chemicals are replaced before depletion) and risky (concentration drifts between measurements can cause defect excursions).

The financial stakes are higher than most engineers realize. Wet cleaning chemicals (SC-1, SC-2, SPM, DHF, BHF, and various specialty chemistries) typically cost $3M-$8M annually for a high-volume fab. Chemical waste treatment adds another $1M-$3M. And the defects caused by inadequate cleaning — particles, metal contamination, surface roughness — account for 30-40% of the total defect-limited yield loss in advanced manufacturing.

What Are the Critical Control Parameters in Wet Cleaning?

Each wet cleaning chemistry has specific concentration, temperature, and process time windows that must be maintained for effective cleaning without damaging the wafer:

SC-1 (APM — Ammonia-Peroxide Mix): Typically NH4OH:H2O2:H2O at ratios from 1:1:5 to 1:4:20, operated at 50-80 degrees Celsius. The NH4OH concentration controls particle removal efficiency (through electrostatic repulsion and surface etching), while H2O2 prevents excessive silicon etching by maintaining the oxide passivation layer. The challenge: H2O2 decomposes at a rate that depends on temperature, contamination level, and bath age. A fresh SC-1 bath loses 5-15% of its H2O2 concentration in the first hour.

SC-2 (HPM — Hydrochloric-Peroxide Mix): HCl:H2O2:H2O at 1:1:5 to 1:2:8, operated at 50-80 degrees Celsius. Removes metal ion contamination (Fe, Al, Zn, Na) through complexation. Same H2O2 decomposition challenge as SC-1.

SPM (Sulfuric-Peroxide Mix): H2SO4:H2O2 at 2:1 to 4:1, operated at 100-150 degrees Celsius. Used for photoresist stripping and organic contamination removal. The highly exothermic mixing reaction makes temperature control critical — a 10 degree Celsius temperature change alters the etch rate by 30-50%.

DHF (Dilute Hydrofluoric Acid): HF:H2O at 1:50 to 1:200, used for native oxide removal. The etch rate is extremely sensitive to HF concentration (linear relationship), and even a 5% concentration change causes measurable oxide thickness loss variation across the wafer.

BHF (Buffered HF): NH4F:HF:H2O mixtures with controlled etch rate and selectivity. Buffer ratio and temperature must be tightly controlled for reproducible etch profiles.

The common thread: all these chemistries degrade during use through evaporation, drag-in contamination from wafers, chemical decomposition, and reaction byproduct accumulation. The rate of degradation depends on the wafer throughput, incoming contamination level, and environmental conditions — making fixed-schedule replacement fundamentally suboptimal.

What Sensor Technologies Enable Real-Time Chemical Monitoring?

Modern wet cleaning equipment (DNS, SCREEN, TEL, Lam) is increasingly equipped with inline sensors that provide continuous monitoring of bath conditions:

Conductivity sensors: Measure the ionic strength of the solution, which correlates with chemical concentration. Accuracy: 0.1-0.5% for single-component solutions, but less reliable for multi-component mixtures where multiple species contribute to conductivity.

pH and ORP (Oxidation-Reduction Potential) sensors: pH indicates the acid-base balance; ORP indicates the oxidizing power of the solution (directly relevant for H2O2 concentration monitoring). These provide real-time trending but require regular calibration (typically weekly).

Temperature sensors: Multiple thermocouples or RTDs throughout the bath (surface, mid-depth, near heating elements) provide temperature uniformity data. Accuracy: 0.1-0.3 degrees Celsius.

Flow rate sensors: Circulation pump flow rate, chemical supply line flow rates, and DI water rinse flow rates. Changes in circulation flow indicate filter clogging or pump degradation.

Particle counters: In-line liquid particle counters (LPC) monitor the particle content of the recirculating chemistry. A sudden particle spike indicates either wafer-induced contamination or equipment failure (e.g., filter breakthrough, pump seal degradation).

Near-IR spectroscopy: Advanced installations use inline NIR probes to directly measure chemical concentration (H2O2, NH4OH, HCl, HF) with 0.1-0.3% accuracy. While more expensive than conductivity sensors ($20K-$50K per probe), they provide the most reliable concentration data.

Dissolved metal monitors: Inline ICP-MS or voltammetric analyzers detect ppb-level metal contamination in real time. These are typically used on the most critical cleaning steps (pre-gate oxide clean, pre-epitaxy clean).

A modern single-wafer wet clean tool with 4-8 process chambers generates 40-100 sensor channels. A batch wet bench with 6-12 chemical baths generates 60-150 channels. The challenge is not data availability but data interpretation — translating these sensor readings into actionable process intelligence.

How Does AI Transform Wet Clean Process Control?

AI-powered wet clean monitoring integrates all available sensor data into a unified process intelligence system with several key capabilities:

Real-time concentration estimation: AI models combine conductivity, pH, ORP, temperature, and flow data to estimate the concentration of each chemical component with accuracy approaching that of offline titration. The model accounts for cross-sensitivities (e.g., temperature effects on conductivity, ionic strength effects on pH) that confound single-sensor interpretations. Typical accuracy: 0.3-0.8% for major components, compared to 1-3% for single-sensor estimates.

Bath lifetime prediction: Rather than replacing chemicals on a fixed schedule, the AI system predicts the remaining effective lifetime based on current concentration trends, throughput rate, and historical degradation patterns. This prediction enables just-in-time chemical replacement — neither too early (wasting chemicals) nor too late (risking defects). Typical improvement: 15-25% chemical lifetime extension while maintaining or improving cleaning performance.

Defect prediction: By correlating historical sensor data with post-clean defect inspection results (from KLA or Applied Materials inspection tools), the AI model learns which sensor patterns precede defect excursions. This enables proactive intervention — adjusting chemistry, increasing rinse time, or triggering bath replacement — 10-30 minutes before the first defective wafer is processed.

Rinse optimization: DI water rinsing after chemical processing is a major contributor to process time and water consumption. AI models predict the rinse endpoint (residual chemical concentration below specification) based on initial chemical concentration, rinse flow rate, and wafer loading pattern. This typically reduces rinse time by 15-30% while ensuring complete removal.

How Is the AI System Deployed for Wet Clean Equipment?

The NeuroBox E3200S platform provides the edge computing foundation for wet clean intelligence. The deployment addresses the unique challenges of wet process monitoring:

Multi-tool aggregation: A typical wet clean bay has 10-30 tools (a mix of batch and single-wafer). The NeuroBox system connects to all tools simultaneously, providing a unified view of chemistry consumption, defect trends, and performance benchmarks across the bay. This enables identification of tool-to-tool variations that are invisible when tools are monitored independently.

Chemistry supply chain integration: The system tracks chemical lot information, drum replacement events, and supply line flushing to detect chemistry-related variations. A contaminated chemical drum can be identified from sensor patterns within the first 5-10 wafers, before it causes widespread defects.

Cross-process correlation: Wet clean performance directly impacts subsequent process steps. The AI system correlates cleaning parameters with downstream metrics — such as gate oxide integrity, contact resistance, and surface roughness — creating a closed-loop feedback system that optimizes cleaning for the actual downstream impact, not just surface cleanliness specifications.

Regulatory compliance: Chemical waste composition prediction ensures compliance with environmental discharge limits. The system tracks cumulative chemical loads in waste streams and alerts operations teams before regulatory thresholds are approached.

For equipment commissioning, the NeuroBox E5200 with Smart DOE capability optimizes the complete cleaning recipe — chemical concentration, temperature, process time, megasonic power (if applicable), and rinse parameters — with 50-70% fewer test wafers than traditional DOE. This is particularly valuable for developing cleaning processes for new materials (e.g., high-k metal gate stacks, cobalt interconnects) where the chemistry interaction space is poorly understood.

What Is the Total Value Proposition of AI for Wet Cleaning?

The ROI from AI-powered wet clean control is compelling across multiple dimensions:

Chemical cost reduction: Extending bath lifetime by 15-25% through AI-optimized replacement schedules reduces chemical costs by $500K-$2M annually for a high-volume fab. Additional savings come from optimized concentration setpoints that use 5-10% less chemical per bath while maintaining cleaning effectiveness.

Water savings: Optimized DI water rinsing reduces water consumption by 15-30%, worth $200K-$600K annually at typical ultrapure water costs of $3-$8 per cubic meter. This also reduces wastewater treatment costs proportionally.

Defect reduction: Preventing cleaning-related defect excursions — which account for 30-40% of random defect yield loss — improves overall yield by 0.5-1.5%. At $5,000 per wafer and 50,000 wafers per month, a 1% yield improvement is worth $30M annually. Even capturing 10% of this opportunity through better cleaning control yields $3M.

Throughput improvement: Reduced rinse times and elimination of unnecessary bath dumps increase effective wet clean throughput by 5-10%, relieving what is often a capacity bottleneck in the fab.

Environmental compliance: Reduced chemical consumption and waste generation support ESG goals and may qualify for environmental credits or regulatory benefits.

Total annual value for a wet clean bay of 15-25 tools: $5M-$10M against a deployment investment of $300K-$600K. The payback period of 1-2 months and the environmental co-benefits make wet clean AI one of the most attractive and easiest-to-justify investments in semiconductor manufacturing intelligence.
